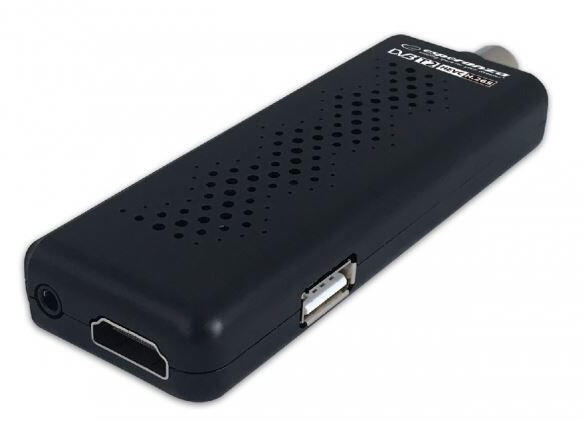

ESPERANZA EV109R – modern digital television in a compact form The digital tuner/decoder Esperanza EV109R is the latest and exceptionally compact version of a DVB-T/T2 terrestrial TV decoder, designed for modern users who value minimalism and convenience. The device enables reception of free-to-air terrestrial television in high definition, offering wide compatibility with video and audio standards as well as practical recording features. High image quality and modern transmission standards The decoder supports MPEG-2 , MPEG-4 H. 264/AVC and H. 265/HEVC standards, allowing reception of TV channels in quality up to Full HD 1080p . Support for 4:3 and 16:9 aspect ratios ensures the image is always properly adjusted to your television. Programme recording and Timeshift function The built-in PVR (Personal Video Recording) function allows TV programmes to be recorded in digital quality to external USB storage devices. The Timeshift function lets you pause live broadcasts and return to them at a convenient moment – giving you full control over what you watch and when. Minimalist design and USB power supply Thanks to its compact construction, the decoder can be easily hidden behind the TV. 5 V USB power supply allows the device to be connected directly to the TV’s USB port or to an external power adapter, making installation quick, simple and clutter-free. Wide compatibility and practical connectors The decoder is equipped with HDMI v. 1.3 , AV output , USB port and antenna input , ensuring compatibility with most televisions available on the market – both modern and older models. Intuitive operation and external IR receiver A clear on-screen menu and a functional remote control provide easy access to all features. The included IR receiver cable allows convenient control even when the decoder is hidden behind the television. Choose modern terrestrial digital TV reception in a compact form with the Esperanza EV109R. Technical data

• Product type: Terrestrial digital TV tuner / decoder
• Name: Esperanza Digital DVB-T2 H. 265/HEVC Tuner/Decoder EV109R
• Product code: EV109R
• EAN / Barcode: 5901299958131

Suppor ted standards:

• E-AC3
• MPEG-2
• MPEG-4 H. 264/AVC
• H. 265/HEVC

Product functions:

• Built-in PVR recording function
• Timeshift – time-shifted playback
• Playback of multimedia files and photos from USB storage

Supported resolutions:

• 576i / 576p / 720p / 1080i / 1080p

Audio:

• DIGITAL SOUND AC3
• E-AC3

As pect ratios:

• 4:3
• 16:9

Input frequencies:

• 174–2 30 [MHz]
• 470–790 [MHz]

Bandwidth:

• 7 and 8 [MHz]

Modulation:

• QPSK
• 16QAM
• 6 4QAM
• 256QAM

Built-in connectors:

• HDMI v. 1.3
• Antenna input
• USB
• AV

Connectivity / power:

• Power supply: 5 [V] (USB)
• Power consumption: < 5 [W]
• Standby power consumption: < 0.5 [W]
• Remote control power supply: 2 × AAA (not included)

Included cables and accessories:

• HDMI cable – length 1 [m]
• IR receiver cable – length 75 [cm]
• USB power cable – length 60 [cm]

Dimensions:

• 115 × 38 × 17 [mm]

Other:

• Certificates and standards: CE
• Manufacturer warranty: 24 months

Így is ismerheti: EV 109 R, EV 109R, EV109 R
